Описание

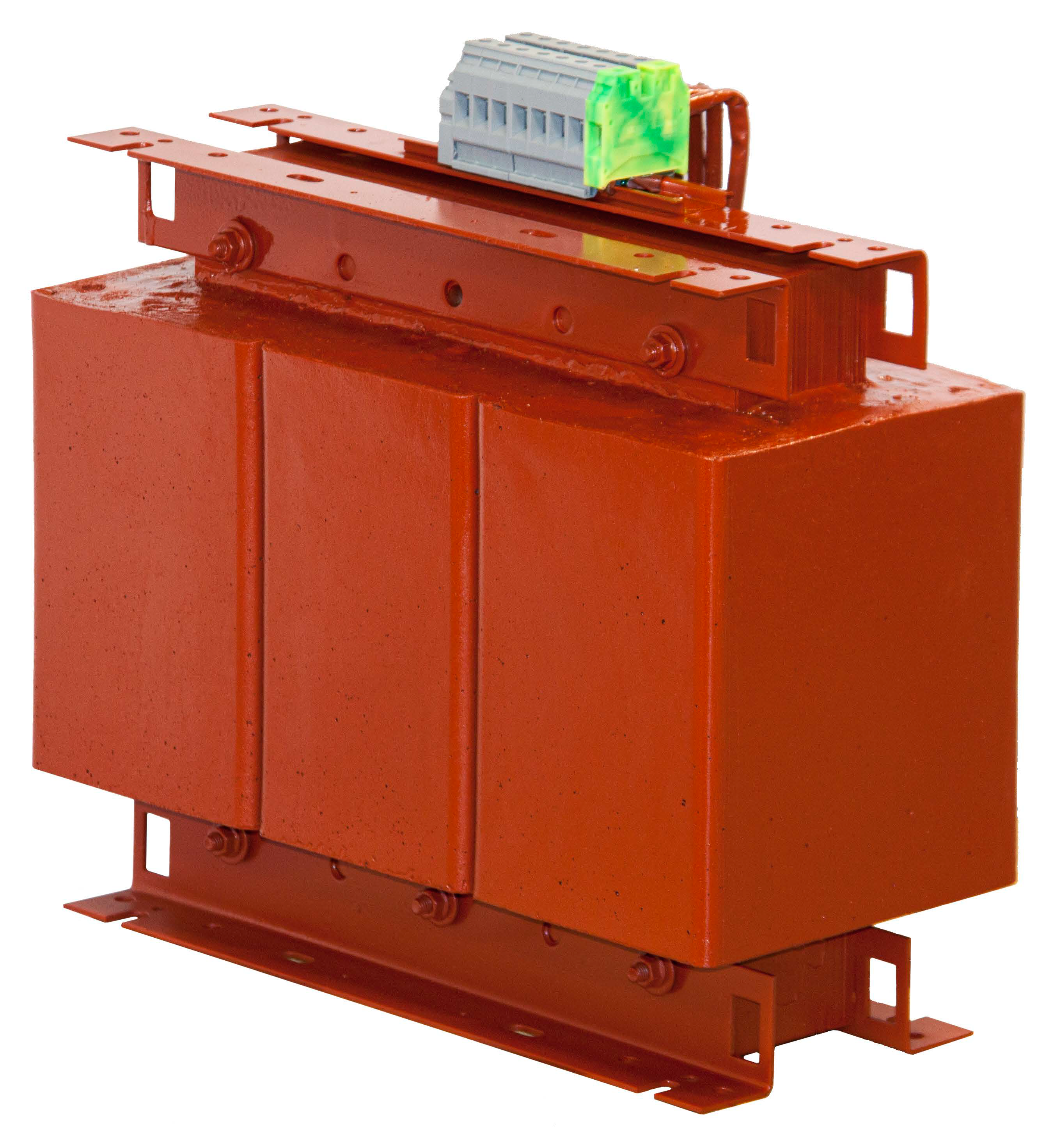

Dry type resin cast transformer

Advantages of resin technology:

  • Protection against corrosive environments
  • Protection against high vibration levels
  • Protection against electrodynamic efforts
  • Reduction of noise level
  • Increase of product’s lifespan

Safety class I

Includes lifting eyebolts from 6,3 kVA

Possibility of tailor-made manufacturing

Angebot anfragen
Um ein kommerzielles Angebot zu erhalten, senden Sie eine Anfrage an info@polylux-transformatoren.de
Charakteristiken
Rating: 0,63 kVA
Input voltage: 400 V
Output voltage: 400 V
Frequency: 50/60 Hz
Connection group: Yyn0
Protection degree: IP-20
Cooling: AN
Ambient temperature: 40 ºC
Temperature rise: Class F
Insulation: Class F - 155ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz)
Standards: IEC/EN/UNE-EN 61558, CE
Include: Bimetal thermal protection
Weight: 9,2 kg
Dimensions (AxBxCxDxE): 175x165x160x145x126 mm 4Ø
