Polylux TRA1.6 AC/DC converter
Charakteristiken
Rating: 1,6 Adc
Input voltage: 230 Vac
Output voltage: 12 Vdc
Output ripple: 48%
Frequency: 50/60 Hz
Protection degree: IP-20
Cooling: AN
Ambient temperature: 25ºC
Temperature rise: Class B
Insulation: Class B - 130ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz) pri-sec 3 kV (1 min, 50 Hz) pri-earth 0,5 kV (1 min, 50 Hz) sec-earth
Standards: IEC/EN/UNE-EN 61204, CE
Mounting: Screws and DIN Rail
Weight: 0,76 kg

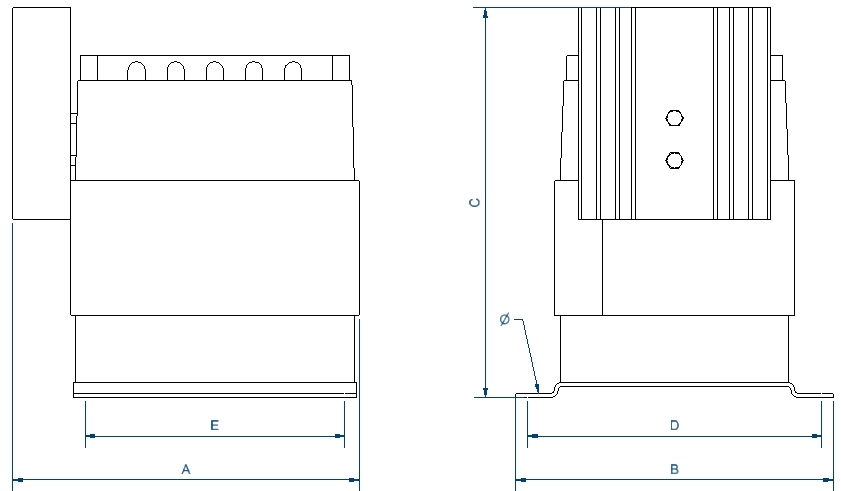

Dimensions (AxBxCxDxE): 80x97x74 mm 6Ø
Input voltage: 230 Vac
Output voltage: 12 Vdc
Output ripple: 48%
Frequency: 50/60 Hz
Protection degree: IP-20
Cooling: AN
Ambient temperature: 25ºC
Temperature rise: Class B
Insulation: Class B - 130ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz) pri-sec 3 kV (1 min, 50 Hz) pri-earth 0,5 kV (1 min, 50 Hz) sec-earth
Standards: IEC/EN/UNE-EN 61204, CE
Mounting: Screws and DIN Rail
Weight: 0,76 kg
Dimensions (AxBxCxDxE): 80x97x74 mm 6Ø
