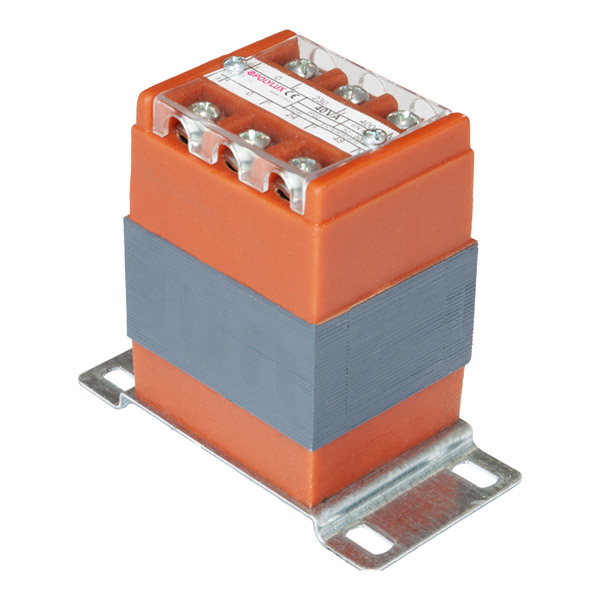

Polylux R16 Reactor
Charakteristiken
Rated current: 16 A
Motor rating: 1,85 kW / 2,5 CV
Line voltage: 220 - 260 V
Reactor: 1,373 mH (50 Hz)
Voltage drop: 3% (50 Hz)
Frequency: 50/60 Hz
Protection degree: IP-20
Thermal protection: Thermal protection (NC) 120°C
Cooling: AN
Ambient temperature: 40ºC
Temperature rise: Class B
Insulation: Class B - 130ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz)
Standards: IEC/EN/UNE-EN 60076-6, CE
Mounting: Screws
Weight: 1,8 kg
Dimensions (AxBxCxDxE): 75x96x110x80x56 mm 6Ø
Rated current: 16 A
Motor rating: 1,85 kW / 2,5 CV
Line voltage: 220 - 260 V
Reactor: 1,373 mH (50 Hz)
Voltage drop: 3% (50 Hz)
Frequency: 50/60 Hz
Protection degree: IP-20
Thermal protection: Thermal protection (NC) 120°C
Cooling: AN
Ambient temperature: 40ºC
Temperature rise: Class B
Insulation: Class B - 130ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz)
Standards: IEC/EN/UNE-EN 60076-6, CE
Mounting: Screws
Weight: 1,8 kg
Dimensions (AxBxCxDxE): 75x96x110x80x56 mm 6Ø
