- Acoustic panel signaling
- Insulation fault signaling
- Fault signaling due to overload
- Fault signaling due to overtemperature
- Joint check: VA40 + TI1 + CR5
Polylux CR5 Isolation monitor
Описание
Angebot anfragen
Um ein kommerzielles Angebot zu erhalten, senden Sie eine Anfrage an info@polylux-transformatoren.de
Charakteristiken
Rating: 1,5 VA
Input voltage: 12-24 Vdc
Acoustic Alarm: 2400Hz signal. 2Hz intermittent
Frequency: 50 - 60 Hz
Protection degree: Frontal: IP-30, Rear: IP-20
Ambient temperature: From -10 to 60C
Humidity: 95% max.
Mounting: Module Flush-Mounted Box Type: E503
Weight: 0,12 kg

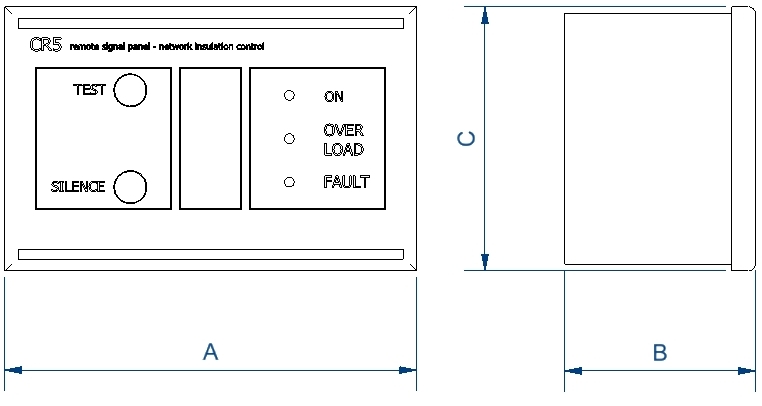

Dimensions (AxBxCxDxE): 123x58x79 mm
Input voltage: 12-24 Vdc
Acoustic Alarm: 2400Hz signal. 2Hz intermittent
Frequency: 50 - 60 Hz
Protection degree: Frontal: IP-30, Rear: IP-20
Ambient temperature: From -10 to 60C
Humidity: 95% max.
Mounting: Module Flush-Mounted Box Type: E503
Weight: 0,12 kg
Dimensions (AxBxCxDxE): 123x58x79 mm
