Dry type autotransformer
Metalic box IP-20 enclosure
Safety class I
Includes connection cable with plugs up to 1000 VA and handgrip up to 2500 VA
Possibility of tailor-made manufacturing

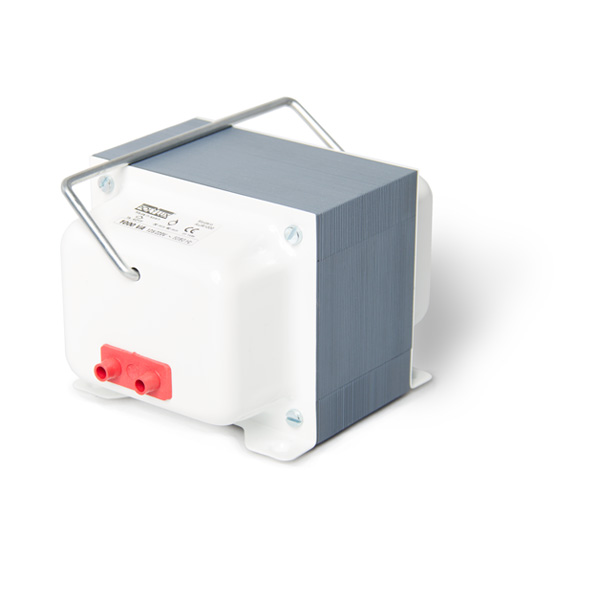

Polylux AUR300 Autotransformer
Angebot anfragen
Um ein kommerzielles Angebot zu erhalten, senden Sie eine Anfrage an info@polylux-transformatoren.de
Charakteristiken
Rating: 300 VA
Input voltage: 220 V
Output voltage: 125 V
Frequency: 50/60 Hz
Protection degree: IP-20
Cooling: ANAN
Ambient temperature: 25ºC
Temperature rise: Class B
Insulation: Class B - 130ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz)
Standards: IEC/EN/UNE-EN 61558, CE
Mounting: Screws
Weight: 2,1 kg

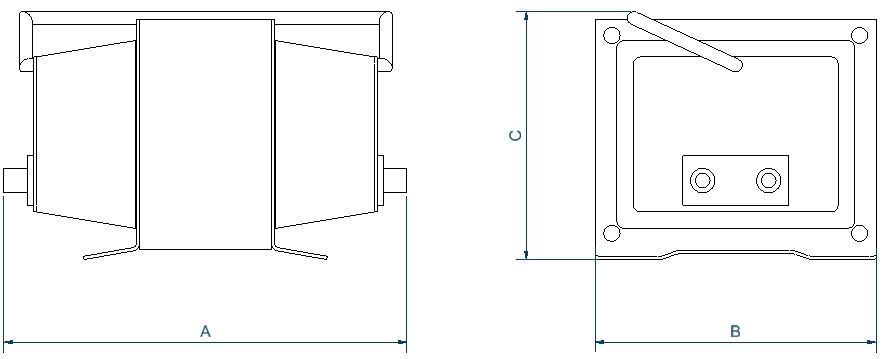

Dimensions (AxBxCxDxE): 84x115x75 mm
Input voltage: 220 V
Output voltage: 125 V
Frequency: 50/60 Hz
Protection degree: IP-20
Cooling: ANAN
Ambient temperature: 25ºC
Temperature rise: Class B
Insulation: Class B - 130ºC
Windings: Class HC - 200 ºC
Test voltage: 3 kV (1 min, 50 Hz)
Standards: IEC/EN/UNE-EN 61558, CE
Mounting: Screws
Weight: 2,1 kg
Dimensions (AxBxCxDxE): 84x115x75 mm
